NK Technologies' VTD Voltage Transducers Now Available with 0–5 and 0–10 VDC Outputs

Published by Cyndi Rude   – October 8, 2015
Categories:

VTD Series Voltage Transducers are high-performance transducers for sensing voltage in DC powered installations. Applicable for use on circuits to 600 VDC, VTD voltage transducers provide fully isolated 0–5 VDC, 0–10 VDC, and 4–20mA outputs proportional to rated nominal voltage in DC circuits. Housed in a slim, compact, easy-to-install DIN rail mount case, the VTD Series comes in a variety of nominal voltages.

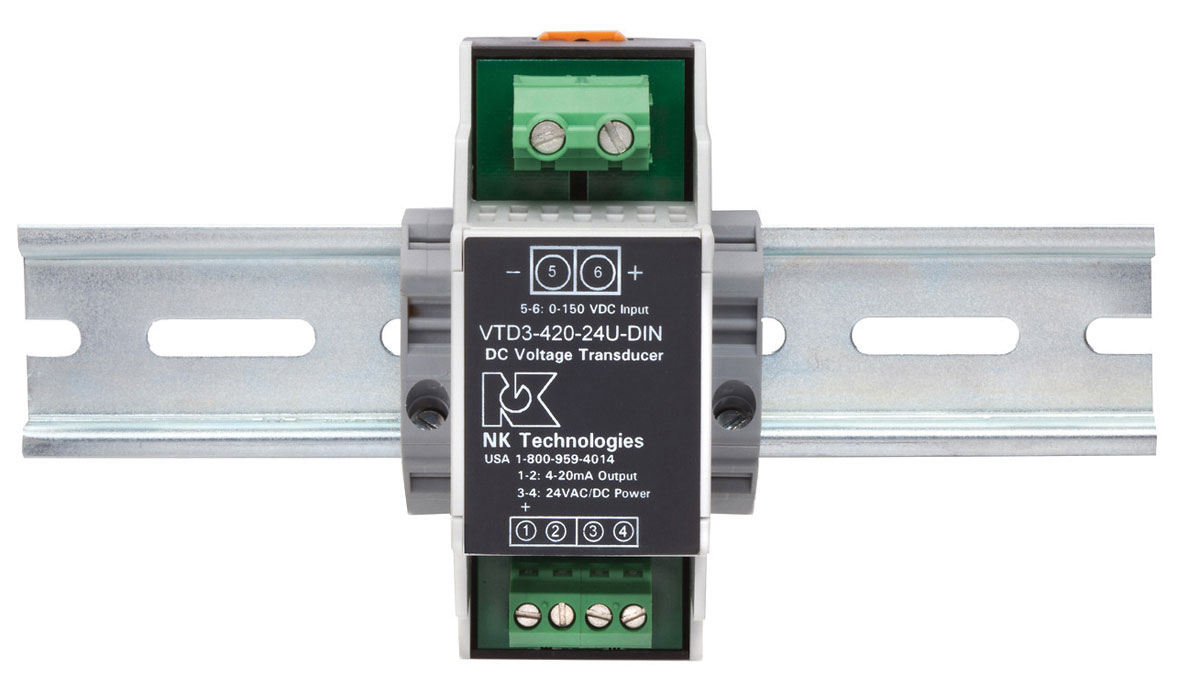

VTD Series DC Voltage Transducers

Features:
• Several ranges available for your application, from 0–15 VDC to 0–600 VDC.
• Industry standard outputs makes use with existing controllers, data loggers and SCADA equipment easy and reliable.
• Input and Output circuitry electrically isolated for improved safety of use.
• Space saving 35 mm wide DIN rail mount case for quick installation.

Read more information on the VTD Series





Click to Request a Quote or call 281.999.8588
