Vulcan Hazardous Area Certified HMI from Strongarm Energy
Introducing the Vulcan series hazardous area certified Class 1 Div 2, Zone 2 HMIs: a versatile, feature-rich CSA, ATEX,and IECEx certified Panel PC.
Hazardous Area Instrumentation for Safe Operations
TALON offers sensors, transmitters, indicators, enclosures, and computers certified for use in hazardous area applications. TALON Technical Sales proudly represents high-quality hazardous area products from Intempco, Kahn Instruments, and Hansford.
Hazardous location sensors are available for the following measurements:
- Touchscreen HMI Computer
- Temperature
- Pressure
- Level
- Flow
- Linear Position
- Vibration
- Moisture/Dewpoint
TALON can also provide hazardous area certified signal conditioners, transmitters, barriers, displays, flow rate & totalizers, and HMI PC's.
Contact a TALON specialist about your applications and requirements, we will help you chose equipment meeting the necessary regulatory requirements for your project.
Panel or Field Mount HMIs
Panel mount HMI monitors and field mount HMI monitors provide the visual layer that connects operators…
Learn More

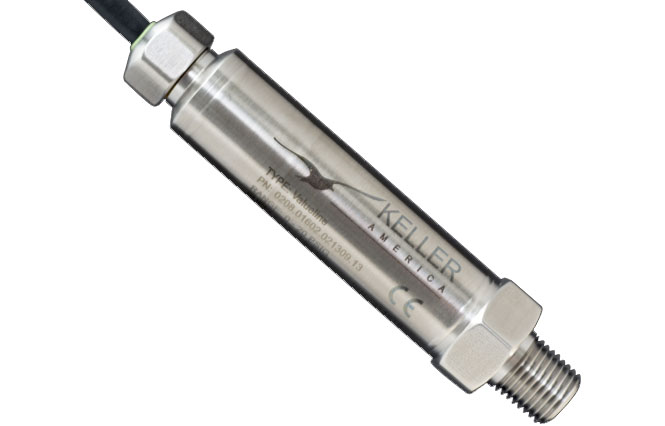

Pressure Transmitters
Pressure transmitters support accurate monitoring and control across industrial, municipal, and commercial…
Learn More.png)

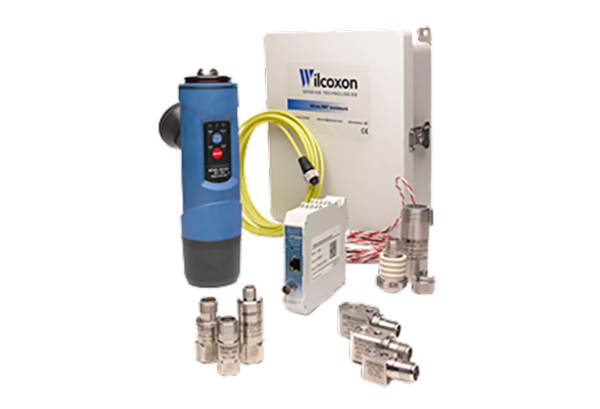

Acceleration/Vibration Sensors
Acceleration sensors and accelerometers help reveal how machinery behaves when motion, load, or structural…
Learn More

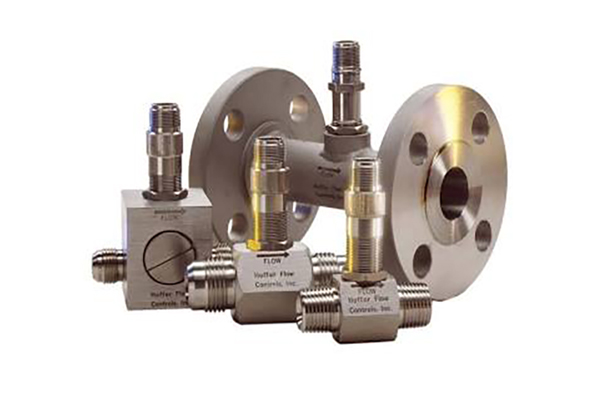

Turbine Flow Meters
Turbine flow meters support accurate flow measurement across clean liquid and gas applications by translating…
Learn More
Explore More Products
Touchscreen HMI Computer
- Extended Operating Temperature -35 degrees Celsius to 60 degrees Celcius
- Intel i7 Dual Core or Quad-Core processors
- Feld swappable hard drives and components
- Versatile, feature-rich US/CAN and ATEX/IECEx certified Panel PCs and displays
Temperature

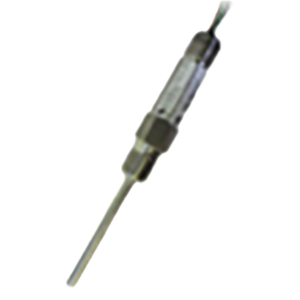

Intempco Programmable Temperature Switch & Transmitter
- CSA Class I Div. 1 Explosion Proof
- Available 4-20 mA or voltage programmable signal output
- Available fully programmable switch output; relay or transistor
- Field re-programmable with optional PC interface module & software
- Security password and tracking protection for re-programming and re-calibration
- Utilizes self-calibration feature for accurate and stable performance
- Utilizes Pt-100 Ohm RTD Class A element for temperature sensing
- Standard SS316/SS316L construction
- Type 4X, IP66/IP67 rated environmental protection
- Easy installation with various mounting configurations
Pressure
TRICOR Coriolis Hazardous Area Certified Mass Flow Meter
- 1/8" through 3" models available
- Flow rates from 325 I/h (1.43 gpm) to 230,000 I/h (1013 gpm) full scale
- Custom flow connectors and installation lengths
- Excellent repeatability +-0.05% of flow rate
- ATEX, IECEx, CSA triple approval Zone 1, Class 1 Div 1
Moisture

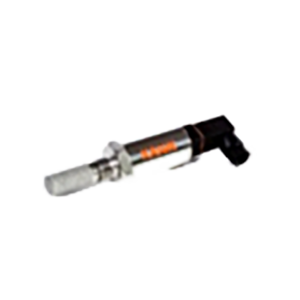

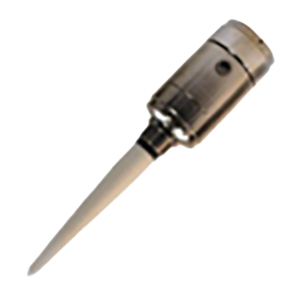

Kahn Easidew I.S. (Intrinsically Safe) Dewpoint Transmitter
- Class I, Division 1, Groups A, B, C, D
- Dewpoints from -148°F to +68°F
- Accuracy to ±3.6°F
- Pressures to 5000 PSIG
- 4-20mA outputs
- Temperature compensation

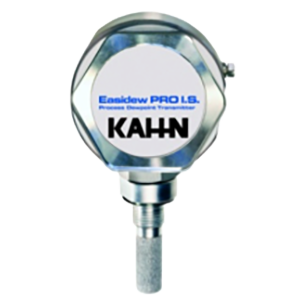

Kahn Easidew PRO I.S. (Intrinsically Safe) Dewpoint Transmitter
- FM/CSA certified for Class I, Division 1, Groups A, B, C, D
- Heavy duty, process type NEMA 4 enclosure
- Dewpoints from -148°F to +68°F
- 4-20mA output configurable in °F, °C, or PPMv
- 2-wire, loop-powered operation
- Dewpoint accuracy of ±3.6°F
- Pressures to 5000 PSIG

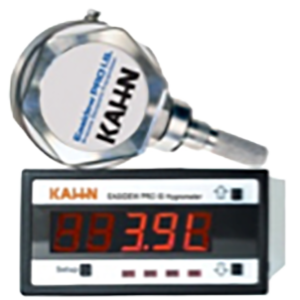

Kahn Easidew PRO I.S. (Intrinsically Safe) Hygrometer
- FM/CSA certified for Class I, Division 1, Groups A, B, C, D hazardous environments
- Heavy duty, process type NEMA 4 sensor housing
- Dewpoints from -148°F to +68°F; ±3.6°F dewpoint accuracy
- Dual alarm relays and scalable 4-20 mA or 0-10 VDC output
- Includes digital display, I.S. dewpoint sensor, Galvanic Isolation Interface and sensor cable
- Manual or auto pressure compensated PPMv, Lb/MMSCF or g/m3 measurement
- Pressures to 5000 PSIG
- Open sensor alarm

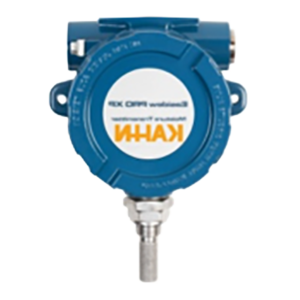

Kahn Easidew PRO XP (Explosion Proof) Moisture Transmitter
- CSA, ATEX, IECEx, certified for Class I, Division 1, Groups A, B, C, & D
- Dewpoints from -166°F to +68°F (-110°C to +20°C)
- 4-20 mA linear, configurable output signal
- Rugged NEMA 4 weatherproof housing
- 0-3000 PPMv moisture content in gas
- 0-1000 PPMw moisture content in liquid
- Explosion proof and flame proof
- 2-wire, loop-powered operation
- Dewpoint accuracy to ±1.8°F
- 14 to 28 VDC operation
- Pressures to 6500 PSIG
- Dual conduit entry

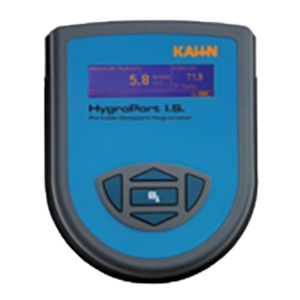

Kahn HygroPort I.S. (Intrinsically Safe) Portable Hygrometer
- FM/CSA certified for Class I, Division 1, Groups A, B, C, D hazardous environments
- Dewpoint measurements from -148°F to +68°F; ±1.8°F typical dewpoint accuracy
- Fast-responding internal ceramic sensor
- Second process input channel for external transmitter
- Internal data logging facility (log up to 320,000 points)
- Bluetooth wireless interface to application software
- 1/8" NPT inlet and outlet gas connections; stainless steel gas wetted parts
- Pressure compensated PPMv, Lb/MMSCF or g/m3 measurements
Level

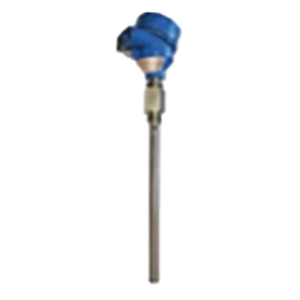

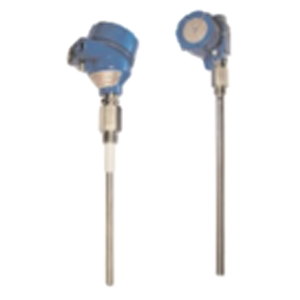

Intempco Model LTX20 EX Fuel/Oil (Capacitance Transmitters/Level)
- Designed for fuel, diesel, biofuel
- 3/4" NPT Process Connection
- 3/4” concentric tube design
- Accuracy 1% of span for constant dielectric of material
- Tube and inner probe SS316
- For use with metallic and non-metallic tanks
- OEM applications, low cost
- Continuous loop powered 4-20mA operation
- Non-interactive zero and span calibration
- Explosion Proof USL/CNL
- CSA Class 1 Div 2 Groups A,B,C,D
Intempco Model LTX20UL (Capacitance Level Transmitters)
- Explosion Proof Design
- Easy Calibration
- Consistent Accuracy
- Reliability
- Housings
- Mountings and Probes
Intempco Radar Level Sensors for Oil-Water Interface Detection
- Explosion Proof For Class I, Div.1, Groups B, C, D
- Self adjusting tracking radar ideal for oil-water interface detection
- Programmable calibration
- Output 4-20mA/20-4mA
- Output sequences between interface level and oil level
- Optional RS232, RS485 for communications with calibration, diagnostics & data logging software
- PLC compatible (Modbus RTU)
Vibration

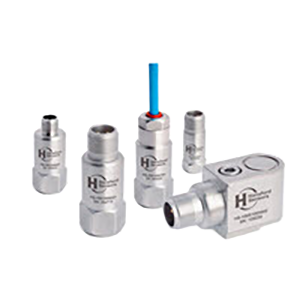

Intrinsically Safe Sensors: Hansford has a wide range of industrial accelerometers, vibration transmitters and accessory equipment.
Supportive accessories for the hazardous areas are also available.
